Top Finned tubes Manufacturers in India | Shiraz Group

Shiraz Group, one of the leading finned tubes manufacturers in India, suppliers and exporters in India, is providing the new technological finned tubes that are long and have a flat tube with fins attached to the outer side, which is specially used in heat exchangers for transferring heat in between the fluids. These are the primary components in heat exchangers and highly used in multiple industries due to their working mechanisms. Let’s check out its various kinds, its benefits and applications!

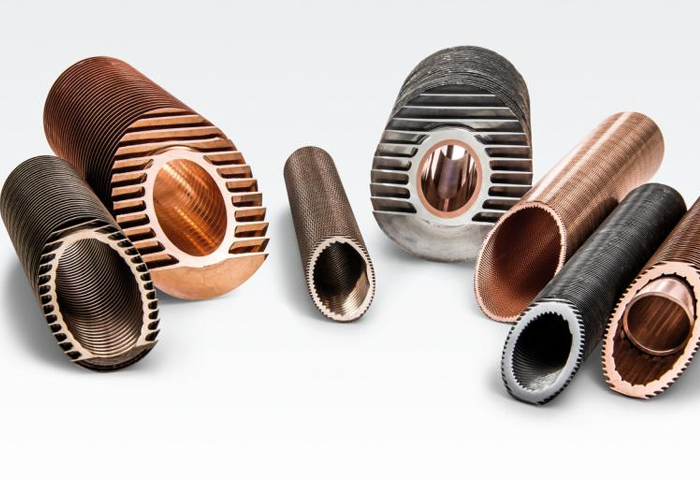

Types of our Finned Tubes in India

One of the best finned tubes suppliers and exporters in India, we have mentioned below our certain types of finned tubes, such as:

• Plain Finned Tubes: These are our primary finned tubes and come with simple and spiral designs where the fins are attached for increasing the heat transfer. These are made with aluminum, copper and various kinds of alloys for improving durability and performance where the higher humidity is available.
• Helical Finned Tubes: Our helical finned tubes have the helical pattern and round around the tube, which gives a higher surface area for heat exchange. We have used new technology such as computational fluid dynamics (CFD) in these tubes for efficient heat transfer and monitoring the process, which is useful in solar thermal systems.
• Plate-finned tubes: These finned tubes are bounded with the tube surface and commonly used in large industries where the higher efficiency of heat exchangers is needed. It is built with highly extensive heat recovery systems, reduces any heat waste due to its plate-fin design and also minimizes pressure drops.
• Spiral Finned Tubes: These tubes are similar to helical tubes but have different kinds of fins and spirals and are used for higher heat transfer in between the fluids. It has a higher transfer rate and disrupts airflow. Due to their handling capability of higher pressure, these are commonly used in the aerospace and automotive industries.

Technical Specifications

For more technical information about our finned tube, we have mentioned below a technical sheet such as:

Parameter	Plain Finned Tubes	Helical Finned Tubes	Plate Finned Tubes	Spiral Finned Tubes
Finned Material	Aluminum, Copper, Stainless Steel	Aluminum, Copper, Stainless Steel	Aluminum, Stainless Steel, Copper	Aluminum, Copper, Stainless Steel
Fin Height (mm)	2 - 10 mm	2 - 10 mm	2 - 12 mm	2 - 10 mm
Fin Spacing (mm)	3 - 15 mm	3 - 15 mm	3 - 15 mm	3 - 15 mm
Fin Thickness (mm)	0.2 - 1.5 mm	0.2 - 1.5 mm	0.2 - 1.5 mm	0.2 - 1.5 mm
Tube Diameter (mm)	6.35 - 50.8 mm	6.35 - 50.8 mm	6.35 - 50.8 mm	6.35 - 50.8 mm
Heat Transfer Coefficient (W/m²·K)	50 - 200 W/m²·K	150 - 500 W/m²·K	150 - 500 W/m²·K	100 - 400 W/m²·K
Pressure Drop (Pa/m)	50 - 500 Pa/m	100 - 1000 Pa/m	200 - 800 Pa/m	150 - 700 Pa/m
Flow Type	Laminar or Turbulent (depending on velocity)	Enhanced by helical structure for increased turbulence	Laminar flow; reduced flow disturbance	Turbulent flow enhancement
Maximum Operating Temperature	200 - 400°C	200 - 400°C	150 - 350°C	150 - 350°C

Features and benefits of using our Finned Tubes

The leading finned tunes manufactures and suppliers in India, our all tubes are made with strong quality materials and used in multiple applications such as:

• Nano-Enhanced Coatings: All tubes now come with Nano-coatings, such as Nano composite coatings, for reducing corrosion and increasing durability. Due to this new innovation, it can increase the heat transfer rate and help maintain the performance over a longer period of time.
• Finned Tubes with Embedded Microchannels: All finned tubes are connected with microchannels within the fins or tubes themselves. These microchannels help for providing the best heat transfer, increase the surface area, and have higher performance in the cooling systems. These are usually used in electronics and power plants.
• Smart Sensor Integration: These all tubes come with new technological sensors and are integrated with IoT (Internet of Things) technology that helps for giving exact output on each and every task and able to monitor the processes such as temperature, pressure and flow rates. Due to this technology, it improves overall reliability and efficiency.
• Cost-effective solution: Our finned tubes are made with strong quality materials and have minimum maintenance as compared to other tubes. The heat transfer technology in these tubes avoids any use of fuel during combustion and reduces energy consumption.

Applications of our Finned Tubes

Being the best finned tube suppliers and exporters in India, all types of tubes are highly used in multiple industries due to their advanced level of technological innovation. Here we have listed down some lists of applications, such as:

• Air-cooled heat exchangers for industrial equipment
• Automotive radiators for engine temperature control
• HVAC systems for efficient air temperature regulation
• Refrigeration systems in commercial and industrial settings
• Power plant cooling for efficient heat dissipation
• Condensers in power generation for heat recovery
• Industrial heat exchangers in chemical processing plants
• Geothermal heat pumps for residential and commercial use
• Oil coolers in machinery to maintain operating temperatures
• Air conditioning units for residential and commercial cooling
• Cryogenic heat exchangers for liquefied natural gas transport
• Waste heat recovery systems for energy conservation

As a former finned tubes manufacturers in India, suppliers and exporter in India, we, the Shiraz Group, are offering the new technological finned tubes, which are made with strong and pure materials such as stainless steel and cast iron for improving durability. The new technological innovation helps for smooth working in any kind of application. For more information, contact us today!

FAQ: Finned Tubes

Q1. What is a finned tubes?

Ans: Finned tubes are heat exchangers designed with metal fins attached to their outer surface. The fins increase the surface area for heat transfer, improving the efficiency of heat exchange between the fluid inside the tube and the surrounding environment.

Q2. What are the applications of finned tubes?

Ans: Finned tubes are commonly used in heating, ventilation, and air conditioning (HVAC) systems, industrial heat exchangers, condensers, radiators, and cooling systems in industries such as power generation, petrochemicals, and air conditioning.

Q3. How do finned tubes improve heat transfer?

Ans: The primary advantage of finned tubes is their ability to increase the surface area in contact with the surrounding air or fluid, facilitating enhanced heat transfer. The added fins help dissipate heat more efficiently.

Q4. What materials are used to make finned tubes?

Ans: Finned tubes can be made from various materials, including aluminum, copper, stainless steel, and carbon steel, depending on the application and the type of fluid or gas involved in heat exchange.

5. What are the benefits of finned tube heat exchangers?

Ans: Finned tube heat exchangers offer improved thermal efficiency, compact design, higher heat transfer rates, and the ability to handle larger volumes of fluid or gas with a smaller footprint.

Q6. How do you calculate the heat transfer rate in a finned tube?

Ans: The heat transfer rate can be calculated using formulas that account for the heat transfer coefficient, temperature difference, and surface area provided by the fins. The effectiveness of the fins (based on material, size, and shape) plays a key role in this calculation.
