Deaerator Tanks Manufacturers in India – Shiraz Group

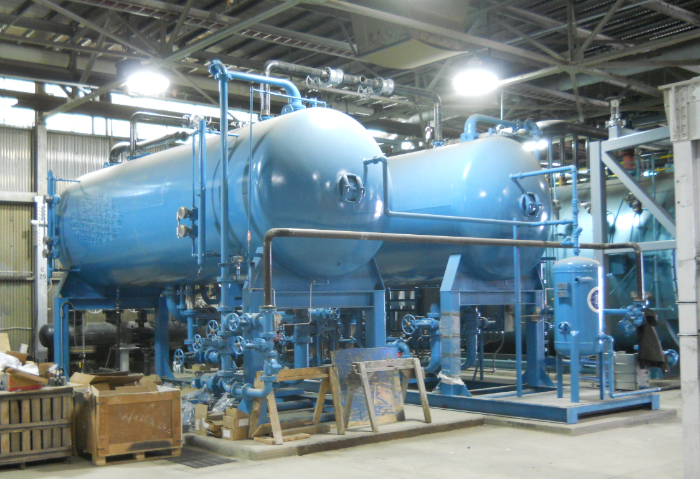

Shiraz Group, a former deaeator tank manufactures, suppliers and exporters in India, is providing the top-quality deaerator tank, which is used in steam systems to remove dissolved gases, mainly oxygen, from boiler feedwater before they enter the boiler.
This system can prevent corrosion in between the machinery or systems and also acts as a storage tank that can heat water to a high enough temperature. We have used new smart detectors and IoT technologies in these tanks to give more performance. Let’s check out its multiple types, benefits and applications one by one!
Our multiple types of deaerator tanks
Being the best deaerator tank suppliers and exporters in India, we are providing the new technological tanks and giving maximum performance. Here we have listed down some types:
- Pressure deaerator (PD) tanks: These are used to operate under pressure to heat the water and remove the dissolved gases. It helps to reach the water's highest temperature without any need for boiling and releasing gases. These are highly used in power plants, refineries and chemical plants.
- Atmospheric deaerator (AD) tanks: These tanks operate under atmospheric pressure by using steam to heat the water. This mechanism can remove the dissolved gas, and water can be boiled at a certain boiling temperature. These are used in lower flow rates where pressure does not need to be at a higher point and are also used in small power generation systems.
- Vacuum deaerator: This deaerator tank uses vacuum to lower the pressure within the tank and causes gases dissolved in the water to be released at a lower temperature. This technology lowers the use of energy and emissions and can be used in small and large-scale industries.
- Spray-type deaerator: In this type, the water is sprayed into the steam and helps for mixing for releasing dissolved gases. This spray-type deaerator is more useful in multiple applications for removing oxygen and carbon dioxide without any external use. These are commonly used in moderate flow rate applications and heating systems.
Technical Specifications
Here we have added below a technical sheet that gives you a more reference about out deaeator tanks:
| Parameter | Pressure Deaerator (PD) Tank | Atmospheric Deaerator (AD) Tank | Vacuum Deaerator | Spray-Type Deaerator |
|---|---|---|---|---|
| Design Pressure | 1.5 - 3.5 MPa (15 - 35 bar) | Atmospheric (0 bar gauge) | 0.2 - 0.5 MPa (2 - 5 bar) | 0.7 - 1.5 MPa (7 - 15 bar) |
| Operating Temperature | 100 - 230°C | 70 - 105°C | 40 - 95°C | 100 - 230°C |
| Capacity Range | 10 - 1000 m³ (3,000 - 264,000 gallons) | 10 - 500 m³ (3,000 - 132,000 gallons) | 10 - 200 m³ (3,000 - 53,000 gallons) | 20 - 500 m³ (5,300 - 132,000 gallons) |
| Design Flow Rate | 100 - 300,000 kg/h | 100 - 50,000 kg/h | 100 - 30,000 kg/h | 100 - 150,000 kg/h |
| Dissolved Oxygen Removal | < 0.005 mg/L | < 0.005 mg/L | < 0.005 mg/L | < 0.005 mg/L |
| Operating Pressure | 1 - 3.5 MPa (10 - 35 bar) | Atmospheric (0 bar) | 0.2 - 0.5 MPa (2 - 5 bar) | 0.7 - 1.5 MPa (7 - 15 bar) |
| Steam Flow Rate | 2 - 50 kg/h per m³ | 2 - 50 kg/h per m³ | 2 - 50 kg/h per m³ | 2 - 50 kg/h per m³ |
| Efficiency | 98 - 99% | 95 - 98% | 95 - 98% | 98 - 99% |
| Design Material | Carbon Steel, Stainless Steel, Alloy Steel | Carbon Steel, Stainless Steel, Alloy Steel | Carbon Steel, Stainless Steel | Carbon Steel, Stainless Steel |
| Energy Consumption | 30 - 100 kW | 15 - 50 kW | 10 - 30 kW | 30 - 100 kW |
| Design Pressure | 1.5 - 3.5 MPa (15 - 35 bar) | Atmospheric (0 bar gauge) | 0.2 - 0.5 MPa (2 - 5 bar) | 0.7 - 1.5 MPa (7 - 15 bar) |
Features and Benefits of our Deaeator Tanks:
The one of the former deaeator tanks suppliers and exporters in India, our all deaeator tanks are made with multiple features that can gives you certain benefits such as:
| Feature | Benefit | Technological Update |
|---|---|---|
| Efficient oxygen removal | Reduces boiler and piping corrosion | Advanced venting systems for precise oxygen control |
| Flexible design options | Fits various industrial applications | Modular and scalable designs |
| Thermal efficiency with steam | Lowers energy costs and improves heat transfer | CFD-optimized flow paths for uniform distribution |
| Durable construction materials | Increases long lifespan, resists harsh environments | Enhanced coatings and corrosion-resistant linings |
| Wide capacity range | Supports small to large-scale operations | AI-based sizing tools for customization |
| Automated control systems | Gives consistent performance with minimal intervention | IoT-enabled real-time monitoring |
| Venting systems | Efficient non-condensable gas release | Optimized venting algorithms to reduce steam loss |
Applications of our Deaeator Tanks:
Being the best deaeator tanks manufacturers and suppliers in India, our all tanks are used in multiple industries such as:
- Power plant boiler feedwater treatment
- Industrial steam generation systems
- Food and beverage processing facilities
- Chemical and petrochemical industries
- Marine steam system operations
- Pharmaceutical production facilities
- Oil and gas processing plants
- Paper and pulp manufacturing processes
- District heating system applications
- Textile industry steam management systems
As leading deaeator tank manufacturers, suppliers and exporters in India, we as Shiraz Group are offering the best technological deaeator tank which can easily separate out the dissolved gases without any external need. The new and updated technological innovations helps for increasing performance and able to use in any kind of industrial sectors. Contact us today for more information!
